MUNBYN IPDA101 Android barcode scanner in black with 2D scanning capabilities, shown in a close-up image.
MUNBYN IPDA101 Handheld Mobile Computer Barcode Scanner
$548.90

Product details

Product Specifications
FeatureDetails

Model

IPDA101

Product Dimensions

160.0 × 76.0 × 15.5 mm / 6.3 × 2.99 × 0.61 in

Item Weight (g)

287 g / 10.12 oz (with battery)

Operating System

Android 13

CPU

Qualcomm 2.0 GHz Octa-core

Display Screen

5.5-inch HD display (18:9), IPS LTPS 1440 × 720; Screen brightness: 450-500nit

Touch Panel

Corning Gorilla Glass, multi-touch, gloves & wet hands supported

RAM + ROM

3 GB + 32 GB

Expand Memory

Supports up to 128 GB Micro SD card

2D Imager Scanner

Zebra: SE4710, Support UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

WLAN

5GHz (channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;

WWAN (America)

  • 2G: 850/900/1800/1900 MHz
  • 3G: 850/900/1900/2100 MHz
  • 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 5.1

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

NFC

  • Frequency: 13.56MHz; Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; Chips: M1 card (S50, S70), CPU card, NFC tags, etc.; Range: 2-4 cm

Camera

Rear 13 MP Autofocus with flash

Battery Capacity

4300mAh(main) removable main battery, 5200 mAh optional pistol battery, supports QC 3.0 and RT(Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh)

Operating Temperature

-20℃ ~ 50℃

Sensor

Gravity, proximity, light, accelerometer, vibration motor

Key

1 power key, 2 scan keys, 2 volume keys

Expand Port

1 slot for SIM card, 1 slot for SIM or TF card

SDK Development

Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin

Product Certification

CE-RED, FCC-ID, FCC-SDOC, ROHS, IC, IP65, MIL-STD-810H, 2m drop

Storage Temperature

-40℃~ 70℃

Environment Humidity

5% RH – 95% RH non condensing

Drop Specifications

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper

Special Features

Zebra SE4710 Scanner Engine; IP65 Rated

Product Comparison

Models THIS MODEL
MUNBYN IPDA101 Handheld Mobile Computer Barcode Scanner
MUNBYN IPDA101 Handheld Mobile Computer Barcode Scanner
Current Page
Scanner Zebra SE4710 --- ---
Screen 5.5-inch HD full screen
450 Nits
1440 x 720
--- ---
Color Black --- ---
CPU Qualcomm SDM6115 --- ---
Connectivity Wi-Fi 6
NFC
4G
BT5.1
--- ---
OS Android 13 --- ---
Battery 4300 mAh(main) removable main battery
5200 mAh optional pistol battery
--- ---
Memory 4GB+64GB --- ---

MUNBYN Android 13 & Wi-Fi 6 Scanner, Raise Your Working Efficiency!

Maximize Device Uptime — Value Beyond The Hardware

  • If you need repair, our local centers (within the United States) are waiting for you. Once you select MUNBYN device, you get comprehensive coverage — if it’s broken, we fix it. With live 24/7 agent technical, help is available when you need it. There’s no waiting for scanners to be returned — a ‘like new’ ready-to-use replacement scanner arrives the next day, complete with your apps, OS version, network configuration and more.
  • The Android data terminal offers a converged solution to cater to the demand of cycle counting, on-demand delivery, asset management, etc.
  • This handheld scanner has obtained Android Enterprise Recommended(AER), which means finely protects the security of enterprise and personal data.
  • The Android bar code scanner is widely used for warehouse management, logistics, retail, manufacturing, agriculture, and e-commerce.
  • Specific applications of the intelligent Android mobile computer are as below: commodity/ quantity/ inventory checks, item locator, assisted selling, items tracking, inventory/ asset management, payment, etc.
  • Ideal for managing your business, support this MDM software: Ivanti, SOTI, Scalefusion, and WizyEMM.
  • Support Zello and Voxer intercom software for recording multiple voices. Say goodbye to traditional radios. The push-to-talk walkie-talkie app is available on your Android scanner, providing unlimited and secure private channels, and crystal-clear broadcasts over cell networks and Wi-Fi. You no longer need expensive specialized equipment or tower leases, making it affordable for everyone to have a voice.
  • Increase work efficiency by never missing any important messages. The intercom software allows you to play back any message at any time, allowing workers to focus on the task at hand and resolve it without any distractions.
  • With a preinstalled professional scanning app (infowedge) for fast and reliable scans. If the trigger is unresponsive, it could be a setting issue.

**Some Unique Designs in Its Class:

  1. Scan button wake up the screen: Click on Settings > Click on Display > Find Wake on Scan and enable it
  2. Different apps can offer different scanning settings: Select the created profile > On the Configuration page, click Associated Applications to start associating applications > Tap the menu in the upper right corner and select > New Application/Activity , a list will be displayed containing all the applications installed on the device
  3. Different bar codes can offer different settings: Clicking on Test ProFile you can see the Advanced Data Formatting > Select your target bar code for differential settings

And so on(check for user manual)

Note: Scanning Range: Show code 39 as an example-scanning range between 1.97 inch/5 cm to 29.92 inch/76 cm.

The Upgraded Android Version from IPDA086 to IPDA101.

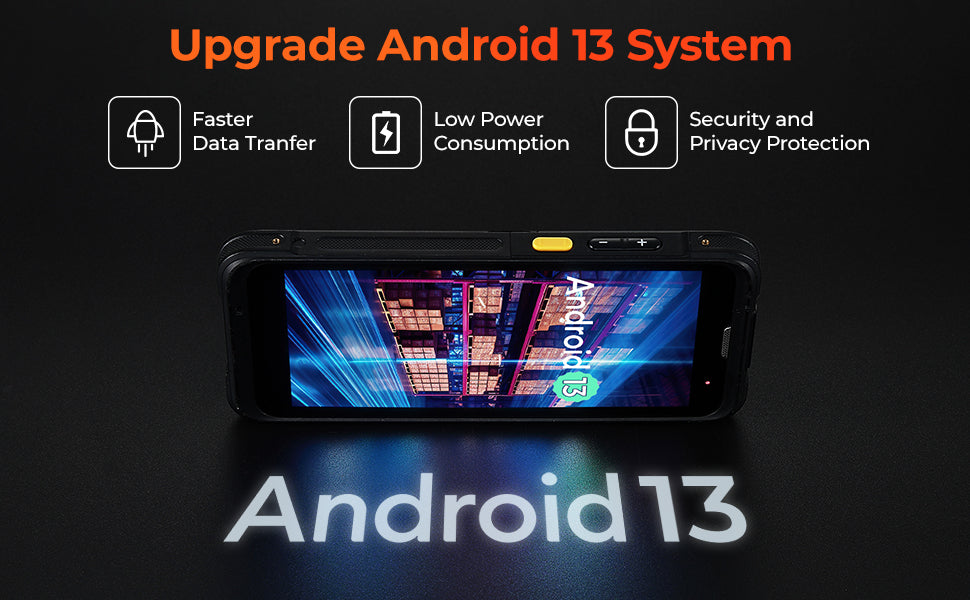

High-ended Android Version

  • The Android bar code scanner IPDA101 adopts the highest PDA Android system in the Enterprise market, thereby maximizing the application user experience.
  • Android 13 is easier to develop and compatible with more Apps. Other devices are equipped with Android 6.
  • Using Android 13 OS ensures the data and processing are safe and protects your privacy.

Three Main Advantages:

  1. Faster Data Tranfer: The latest version of Android system allows device hardware to better integrate with the latest operating system and improves the smoothness of device operation.
  2. Low Power Consumption: Android 13 includes several features designed to reduce power consumption and extend device battery life. The updated version of Android 13 system greatly improves energy efficiency compared to the previous old system version.
  3. Security and Privacy Protection: In Android 13, the capability to integrate bar code scanning features doesn't inherently come with specific security and privacy protections tied directly to the action of scanning bar codes. However, the overall security and privacy framework provided by Android 13 can indirectly benefit applications used in warehousing and logistics, including those that utilize bar code scanning functionality.

High Performance Wi-Fi 6, Key Features & Benefits

  • It’s triple the speed, and Wi-Fi 6 offers much faster data rates. It can raise 300% efficiency when downloading or transferring files.
  • Where Wi-Fi 5 (802.11ac) maxes out at 1200 Mbps, Wi-Fi 6 offers a maximum possible data rate of 1800 Mbps, potentially tripling the speed of its predecessor, Wi-Fi 5,6, and providing support for more bandwidth-intensive applications.

Compared to WiFi 5:

  1. More Capacity Up to 4 times;
  2. Data Throughput Increase Up to 40%;
  3. Backwards Compatibility Up to 100%.

** Please make sure to get MUNBYN Scanner. The products get from other brands may look similar, but there are many differences, such as the scanning setting software. Ours is infowedge (like zebra design), and other brands are keyboardemulator.

In addition, only scanners got from MUNBYN can get MUNBYN's high-quality lifetime assistance.

Know More Details of Android Bar code Scanner

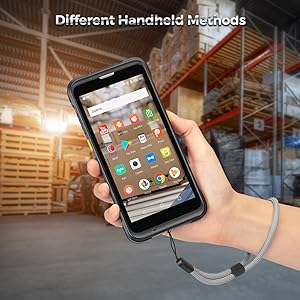

Three Different Handling Methods

  • The PDA handheld computer is equipped with a lanyard and hand strap.
  • Users can choose different handling methods depending on the environment and fields.
  • Make a safer, easier, more convenient working environment.

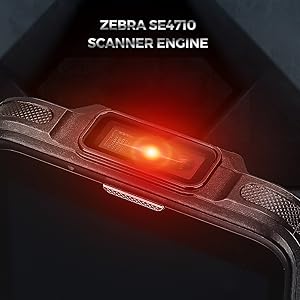

Equip with Accurate Zebra Scanner Engine

  • Finishing the jobs by the Zebra precise scanner engine.
  • Wherever in warehousing, sending, picking, logistics. Track each bar code and commodity from the whole chain.
  • Also, coupled with a rear 13 MP Autofocus with flash, keeping each picture/video clear, significantly increases the user experience.

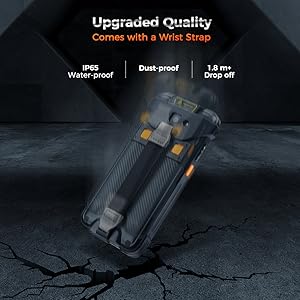

Rugged & Durable Mobile Computer

  • The handheld computer is of IP65 grade, it's enough to be used in kinds of harsh environments.
  • In addition, it has multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete after installing rubber bumper.

Download the Digital User Guide



User Manual

Download Now >>

Why Customers Choose MUNBYN

Discover the difference of choosing MUNBYN.

Over

100K+

Satisfied Customers

Over

400K+

Products Sold

Over

150+

Patents

Selling in

120+

Countries

Over

6000m³+

Factory

Over

500+

Employees

Over

50+

Technicians

Always

24/7

Service & Tech Support

Our Partners

Customers praised this Android-based barcode scanner for its fast, accurate scanning with the Zebra SE4710 engine and ergonomic pistol grip design. The device features a 5.5" touchscreen, long battery life, and works in warehouse environments including coolers. Customers highlighted "excellent" customer service and support. Some noted setup can be tricky and price is high, but most found it cost-effective compared to alternatives.

  • 5 stars: 23 (88%)
  • 4 stars: 3 (12%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Gunthore

This Android scanner is basically a fully functioning Android phone with a built in barcode scanner that can be mounted to a scanner gun for easy use. You can use the internet and insert a SIM card if you wanted to. The device does weigh quite a bit more than a normal phone so it is not the best option for that purpose.The scanner eye is very quick and it takes a fraction of a second to register and accurately display the barcode. There are a lot of settings to adjust to have it work the best way for your business needs.The setting up and does take a lot of time and the instructions to get it scanning are not the best and it does need a lot of work. Once it is all set up and working well, the scanner feature is very good.There is a scanner gun attachment with a built in battery and it works really well. The other case with a hand strap is comfortable.

E
Eizaria
Up to date software and fast scanner

The reason I got this bar code scanner is having a small shop to track my inventory. The scanner which is 2D is very fast and scans immediately. Remember, you can use this scanner as a cellphone because it's compatible with sim cards or you can use it with Wi-Fi. Screen on this device is very bright and high quality picture. Furthermore, I like the battery life which has a fantastic capacity. Highly recommended.

A
ATG E.

Great purchase!

N
Ningzhi
Excellent use, good buy

I initially thought they were products from the same company due to their similar appearance. However, after purchasing a non-MUNBYN product, I realized there are significant differences. MUNBYN��s scanning setup software, infoWedge, is very similar to ZebraDesign and offers comprehensive features, whereas other brands use keyboardemulators. This is just one of the many important distinctions. Additionally, the customer service from the other brand did not meet their claims; I received almost no response when I needed help. However, MUNBYN's support was exceptional��they helped us resolve issues quickly, even with non-MUNBYN scanners. Will hold on MUNBYN always.

S
Share

This was a bit tricky to setup. This is essentially an android smartphone attached to a handle. It actually works great without the handle since i can just fit it in my pocket and scan things as needed.

D
DTM

Very good scanner - have been using them for over a year and no operational issues. we use them and leave them in a cooler (4'C) and no issues

A
Amazon C.

The tech support is terrific which I don't expect.Love the scanner. Thank you

J
JH
Great Scanner

compact and works great. setup was easy and unit responsive.we purchased to try, now will be purchasing more due to its functionality and versatility.

A
AM
Impressive Performance and Ease of Use!

We recently purchased the MUNBYN 2024 Barcode Scanners with Pistol Grip, and we are thoroughly impressed by their performance. The smooth and responsive user experience, combined with Wi-Fi 6, makes connectivity fast and reliable even in busy environments.The ergonomic pistol grip design is comfortable, allowing for easy use over longer periods without causing fatigue. The barcode scanning is impressively fast and accurate, which has significantly boosted our efficiency in daily operations.Setup was straightforward, and the device was ready to go after just a bit of configuration. Additionally, they are fully compatible with our MDM solution, which made the integration process seamless.Overall, these are powerful, reliable, and user-friendly barcode scanners that have become an essential tool in our business.

C
Calbee Q.
Great little device����

This Android barcode scanner features a large 5.5-inch touchscreen that provides users with clear visibility even outdoors due to its excellent sunlight readability, and the device uses a Zebra SE4710 scanner to ensure fast barcode scanning, even for damaged or unclear barcodes. The Barcode Scanner have a great battery life and the scanner is fast and can be customized to your needs��It solves my problem of finding inventory and counting goods!

E
Euro
A lot of money for a scanner, but it is a huge amount of scanner for the cost

The best scanner I have used, period. I work in IT and need to inventory things all the time. Usually, this involves manually noting inventory numbers in a database or spreadsheet. Those days are over now, I technically don't even need my laptop as this holds a SIM card and connects up to my data directly - I moved my files to a cloud-based storage and can now just scan and the data is posted instantly. Even correcting issues is a breeze given the large size of the display and good touchscreen. Basically, it is a full Android cellphone and a very high-end scanner in one perfect package, but with the double battery, you will never run out.

J
Jesse
ADVANCED mobile SCANNER

This hand scanner comes fully equipped with an advanced system. The mobile device doubles as a phone with 2 SIM card slots. It��s easy to use and the touchscreen is responsive. The Android 13 system seems to be the newest version available. You��re able to use this without the handle attachment to scan items. The system allows for a full inventory of items and is well organized. It helps you track when items come in and scan out to help keep stock well organized. It��s well made and relatively durable. You can download all your favorite apps as well as, remove the phone-mobile and use as a scanner and phone which helps you swallow the tag on this device. Overall, a great option for inventory keeping.

C
Cuz W.R.
Vendor worthy

This handheld scanner is a great tool to have for vendor events. It��s easy to set up and you can add an air time if you want to make it more efficient.

J
JC
Great product !

Great product. Technical support is fabulous. We bought 10 of them for our warehouse.

h
human X.
easy to use

This scanner is equipped with the latest Android 13 system, with a smooth interface and easy operation. The 5.5-inch full-screen design provides a wide field of view, sensitive touch, and a very good user experience. The screen display is also very clear, and information can be easily read in both indoor and outdoor lighting. The pistol grip design is a highlight of this scanner. It is comfortable to hold, effortless and convenient to operate, and is especially suitable for long-term use. In addition, the overall weight of the device is light, and it is also very convenient to carry without placing too much burden on the wrist. This device is equipped with a SE4710 Zebra scanner, which can read 1D, 2D and QR codes efficiently and quickly. Whether it is a paper label or a barcode on an electronic screen, it can be accurately identified, greatly improving work efficiency. For work environments that require frequent barcode scanning, this device is undoubtedly an ideal choice, but its price is a bit high. I hope it can be more value for money.

S
Scott J.
A great solution

The Munbyn pistol scanner functionality has totally answered our needs, allowing us to run our warehouse inventory application on the device and scan warehouse supply to keep us accurate and on track. It will also allow us the user the flexibility of tracking their time through our time tracking application. We have had no complaints from the users on ease of use. The batteries have also allowed for enough run-time to get through each shift. Munbyn has also offered quick quality support for any questions that have come up.

A
Alexander H.
Great Product

This scanner is great, works perfectly and the customer service is excellent. They very professional and helpfull. I recommend this product.

S
Steve F.
Customer Service after the sale is EXCELLENT

I have purchased 5 of these for barcode scanners for our receiving department and they have proven to be excellent and very good quality for the price.The customer service that they provide is excellent.I would highly recommend the Munbyn.

T
TDWhiteKnight
Great Service

We have had a number of Munbyn scanners over the years and anytime we have the slightest issue, Mynbyn support was right on it!

A
Action S.
Good and Reliable Product

We used the Zebra MC9200 before we switched to this scanner while the functionality is the same but just a fraction of the cost. They also provide a good after sales service to their customers.

G
Gerda K.
MUNBYN Scanner

MUNBYN's new android inventory scanner is perfect for our company! The scanner is easy to use and works perfectly with our inventory program. The device's battery is durable enough to work in our freezer/cooler storage facility for the whole shift. The device has a large screen that makes reading a breeze but also still small enough to comfortably work with for a whole shift.On a bonus note, MUNBYN"s customer service team is phenomenal! They were able to respond to all of my questions and concerns in a timely manner. They were able to guide me through setting up the device to adjust settings to make our program and the device programming compatible.I would highly recommend this device after my experience with both the device and the support team!

L
LISA D.
Excellent product!

Great product and great customer service�� We purchased 2 in March 2025 then purchased 2 more this month because we really like these scanners�� Very happy with the products��and highly recommend��

J
Jesus F.
Win-Win for your business

We have purchased 25 of these over the last 4 years. We have a warehouse team of 30 shipping millions of units per year.We run our web-based WMS on these scanners and have had great experience. Straight out of the box they do great. When you need help they have a great support team as well.

C
Chuangzhou
Strongly recommend!!!

Strongly recommend!!! This products is so good that scan our products label correctly and efficiently. We bought two for our warehouse, and it is amazing! The battery also last long time enough to use the whole day without charging again. Good products!!!

H
Happy M.C.
High quality android Pistol grip scanner

These pistol grip android scanners are great for warehousing, manufacturing, inventory, etc. Android operating system is fast and smooth and capable. The scanner fidelity is fantastic and reads everything we throw at it. The Dual batteries have a long life and allow for hours of use. The form factor and size of the pistol grip is very ergonomic and efficient. Very happy with these scanners.

A
Andrew
Good devices and quick customer service.

We ordered 12 of these for use in a warehouse. They have been solid devices and the customer service has been solid as well.

FAQs

Please read our FAQs page to find out more.

What is the MUNBYN IPDA101 handheld mobile computer designed for?

The IPDA101 mobile computer combines barcode scanning, mobile apps, and wireless data access for inventory counts, warehouse picking, retail stock control, logistics, and asset management. Its compact design is suited to workers who carry a scanner throughout a shift.

Which barcodes can the IPDA101 Zebra SE4710 scan?

The Zebra SE4710 engine of IPDA101 supports common 1D and 2D formats such as UPC/EAN, Code 128, Code 39, PDF417, Data Matrix, and QR codes. It can also capture many damaged or low-quality barcodes that are difficult for standard phone cameras.

Does the IPDA101 handheld mobile computer support Wi-Fi 6 and mobile data?

Yes. The IPDA101 handheld mobile computer supports Wi-Fi 6 for fast warehouse data transfer, plus 4G cellular connectivity, Bluetooth 5.1, and GPS.

Can I install inventory apps on the MUNBYN IPDA101 handheld scanner?

Yes. It runs Android 13 and supports business apps such as Odoo and Zoho Inventory. MUNBYN Infowedge is preinstalled for barcode input, and Zebra DataWedge is not supported.

Is the IPDA101 screen usable outdoors or with gloves?

The 5.5-inch 1440 x 720 display uses Corning Gorilla Glass and is designed for outdoor readability. Its multi-touch panel supports operation with gloves and wet hands.

How long can the IPDA101 scanner's battery run during a shift?

The removable 4300mAh main battery is rated for more than 12 hours of continuous use depending on the work environment. It supports QC 3.0 charging, and the optional pistol battery can add capacity for scan-heavy workflows.

How rugged is the MUNBYN IPDA101 barcode scanner?

The IPDA101 handheld mobile computer is IP65 rated and tested for repeated drops up to 1.8 m (5.91 ft) onto concrete. With the rubber bumper installed, its drop protection is rated up to 2.4 m (7.87 ft).

Why might the IPDA101 scanner stop working while the camera is open?

The camera and barcode scan engine cannot run at the same time. Close the camera, return to the app linked to your Infowedge profile, and press a scan key again; if needed, restart the app or device.
