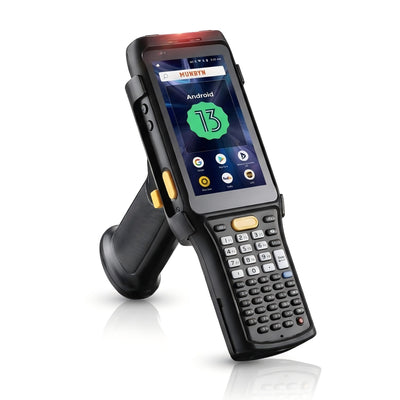

MUNBYN IPDA088P Android barcode scanner with long-range scanning capabilities, shown in black with ergonomic design.
MUNBYN IPDA088P Long-Range Barcode Scanner
$978.99

Product details

Product Specifications
FeatureDetails

Model

IPDA088P

Product Dimensions

202.0 x 72.5 x 32.0 mm / 7.95 x 2.85 x 1.26 in

Item Weight (g)

370 g / 13.05 oz.(SE4710); 404 g / 14.25 oz. (SE4850)

Operating System

Android 13: USB Type-C, USB 3.1, OTG, extended thimble

CPU

Android 13: Qualcomm SDM6115 Octa-core, 2.0 GHz

Display Screen

4-inch high definition full display, IPS LTPS 800*480 Screen brightness: 450-500nit

Touch Panel

Multi-touch panel, gloves and wet hands supported

RAM + ROM

3 GB + 32 GB (standard) / 4 GB + 64 GB

Expand Memory

Supports up to 128 GB Micro SD card

2D Imager Scanner

Zebra: SE4850

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

WLAN

  • Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4,IPV6, 5G PA;
    Fast roaming: PMKID caching, 802.11r, OKC;
  • Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations;
  • Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, etc.

WWAN (America)

  • 2G: 850/900/1800/1900MHz
  • 3G: 850/900/1900/2100MHz
  • 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 5.1

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

NFC

  • Frequency13.56MHz
  • ProtocolISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
  • ChipsM1 card (S50, S70), CPU card, NFC tags, etc.
  • Range2-4 cm

Camera

Rear 13 MP Autofocus with flash

Battery Capacity

6700 mAh removable main battery, 5200 mAh optional pistol battery, support QC3.0 and RTC;Built in 100mAh backup battery, supporting battery hot swap, improving reliability and ensuring user data security

Operating Temperature

-20℃~50℃

Sensor

Gravity sensor, proximity sensor, light sensor, accelerometer sensor, vibration motor

Key

Main keyboard (Optional): 27 keys / 37 keys / 47 keys; Side keys: 2 SCAN keys + 2 volume keys + 1 user-defined key

Expand Port

1 slot for SIM card, 1 slot for TF card

SDK Development

Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin

Storage Temperature

-40℃~ 70℃

Environment Humidity

5% RH – 95% RH non condensing

Drop Specifications

Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range

Product Comparison

Models THIS MODEL
MUNBYN IPDA088P Long-Range Barcode Scanner
MUNBYN IPDA088P Long-Range Barcode Scanner
Current Page
Scanner Zebra 4850LR --- ---
Screen 4-inch
320 Nits
800 x 480
--- ---
Color Black --- ---
CPU Qualcomm SDM6115 --- ---
Connectivity Wi-Fi 5
NFC
4G
BT5.1
--- ---
OS Android 13 --- ---
Battery 6700 mAh(main) removable main battery
5200 mAh optional pistol battery
--- ---
Memory 3GB+32GB --- ---

MUNBYN High-End Long Range Barcode Scanner IPDA088

The biggest difference with the MUNBYN IPDA088 is its ultra-long scanning range, far exceeding other PDAs on the market.

  1. Equipped with the Zebra SE4850LR scan engine, workers can easily capture barcodes on the uppermost warehouse rack.
  2. Dual Batteries & Hot Swap: Equipped with a detachable 6700mAh battery and a built-in 100mAh battery, you can continue working while swapping batteries, leading to an uninterrupted workflow.
  • Note: The MUNBYN PDA088 scanner should not be used for extended periods in environments below -20°C.

Top-Tier Extended Range for Industrial Environments

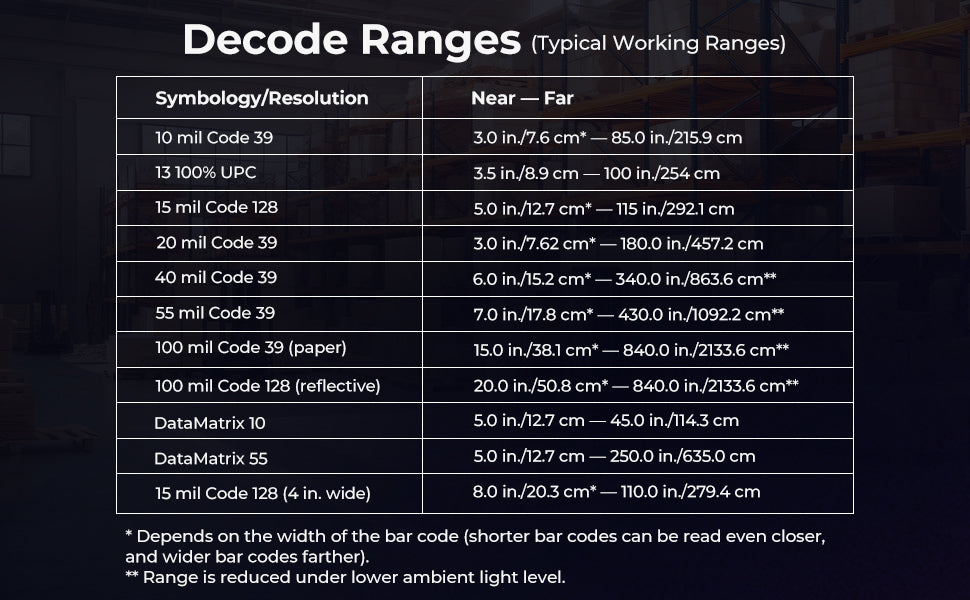

The actual scanning distance depends on the lighting conditions, barcode type, and size. This is not an absolute distance.

MUNBYN IPDA088: Longest-Range Barcode Scanner

  • Scanning distance performance: Zebra SE4850LR (this scanner) > Zebra SE4750MR (search: B0911X86Z2) > Zebra SE4710
  • With the Zebra 4850 scanning engine, this long-range scanning engine can scan barcodes more than 5 meters/17 Ft away.
  • Even if you are driving a forklift, you can sit on the forklift and easily scan remote barcodes.

MUNBYN Handheld PDA Scanner IPDA088

The Latest Android 13

  • This MUNBYN inventory scanner features the latest Android 13, easily integrating with popular inventory management software like inflow, Zoho, Sortly, Odoo, and Orcascan.

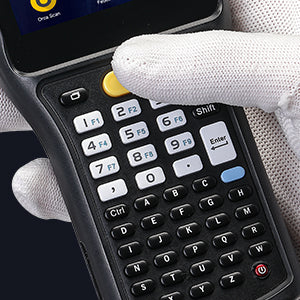

3 Reasons to Choose a PDA with Keypad

  • Supports operation with gloves.
  • Full-screen PDAs cannot scale the layout proportionally. With a scanner that has a physical keypad, the screen size always remains constant.
  • If you need to manually enter a large amount of information, a barcode scanner with a physical keypad will be a better choice for you.

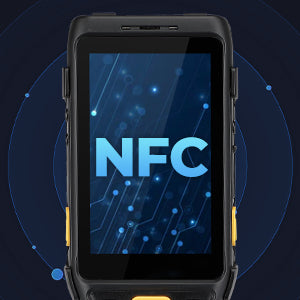

NFC Function

  • Supports Near Field Communication (NFC) for easy pairing.
  • Frequency: 13.56MHz

Download the Digital User Guide



User Manual

Download Now >>

Why Customers Choose MUNBYN

Discover the difference of choosing MUNBYN.

Over

100K+

Satisfied Customers

Over

400K+

Products Sold

Over

150+

Patents

Selling in

120+

Countries

Over

6000m³+

Factory

Over

500+

Employees

Over

50+

Technicians

Always

24/7

Service & Tech Support

Our Partners

Customers praised this long-range barcode scanner as a "game changer" for warehouse operations, noting exceptional scanning distance of 10-12 feet with accuracy. Reviews highlight excellent value at half the cost of competitors, versatile handheld/handle modes, full-day battery life, and responsive touchscreen. Warehouse teams appreciate durability in wet environments and compatibility with business apps.

  • 5 stars: 11 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Dustin B.
Quality product

Our company has been using these scanners for years instead of another much pricier brand and have been satisfied with their performance and quality. Our users enjoy being able to switch between handheld or using the included handle. These are great for regular warehouse tasks with the ability to take pictures

G
Global I.
Quality product after years of use

Our company has been using these Munbyn Scanners for years and are nothing but satisfied with the quality and performance. The versatility to use them in handheld mode or to attach the gun handle (pictured) for quick scanning only adds to the value that these Scanners have added to our production processes.

P
Persimmon T.
Great handheld device

We are using this tablet for our warehouse team requiring portability, durability (wet/old env), flexibility. This unit with external keyboard allows to be mobile as well as stay functional for quick counting, picking, and putting away processes in our warehouse. We are also actively using this device in shipping/receiving area to assist logistics team.Device has smaller enough to be super mobile, but powerful to run apps for our purpose. Biggest benefit is the battery life enabling a full day usage with needing to charge. Physical keyboard (smaller keys and not QWERTY) is added benefit in case of quick data entry. Barcode reading is super efficient, reaching almost 10-12 feet with accuracy. Screen is brighter and responsive to the touch stroke, and buttons are responsive and well placed. We are happy with the performance of the device and are considering to purchase additional units for the rest of the warehouse crew. Half of the cost of Zebra solutions we originally looked at, I would highly recommend this product for both price advantage as well as functionality.

R
Ray S.
Great scanners

We've had great success with these units. The scan engine works great for distance in our warehouses. These scanners are a fantastic value compared to the big brands.

S
Salvatore L.
Cheaper And Effective!

Excellent device. The cost of one of these scanners alone i could get 4 for the price of one the "big" guys. This does everything the other guys do and run all the apps we need for our business.

J
Joe T.
Very pleased!

We are very happy with these scanners. They perform well in our warehouse environment and are priced fairly. Great customer service, too.

J
Joel K.
Long Range Scanning with precision laser

This scanner has a very long range scanning capabilities with a very good laser light.

E
Edward P.
Look no further if you want a quality long-range barcode scanner

My company has purchased 3 of these and we will be purchasing more. Our warehouse staff loves them, especially the long range. The build and overall feel of the product is one of very high quality. Equally important, the support the company provides is EXCELLENT. They spent considerable time working with me on an issue I was having (and the issue was with my specific configuration, not the device itself). This is a quality product, highly recommended!

W
William R.
Highly recommend

I have purchased almost 20 Munbyn devices for my company. They are all working great and best of all, when you have a question or problem, the Munbyn customer service team is excellent!

J
Jennifer
Edited to reflect changes they will make

Edit (2023-07-17) - The vendor called me and asked what changes they could make to this device to be more competitive to Zebra. They told me that they will make the changes in their next revision of this gun. This gun is good if you are going from having nothing to having something to scan barcodes. I am impressed that they take customer feedback so seriously.

A
Ana
Exceeded my expectations in every way ! Great product!!!

This long range android barcode scanner is a game changer! As a business owner, I can't stress enough how important it is to have a reliable and efficient scanner. This device has exceeded my expectations in every way. The long range scanning capability allows me to easily scan barcodes from a distance, saving me time and hassle. The scanner is also incredibly accurate, quickly recognizing even the most complex barcodes. It's compatible with my android software, making it easy to use on the go. I highly recommend this long range android barcode scanner to anyone in need of a top-quality scanning solution. It's an investment that will pay off in spades!

FAQs

Please read our FAQs page to find out more.

What jobs is the MUNBYN IPDA088P long-range barcode scanner designed for?

The IPDA088P-LR barcode scanner is designed for high-rack warehouses, distribution centers, forklift scanning, receiving, shipping, and inventory work where labels may be several feet away. Its physical keys and pistol-style form support repeated scanning and data entry.

How far can the IPDA088P Zebra SE4850 scan?

Its Zebra SE4850 engine can read suitable barcodes from up to about 5 m (16 ft). Maximum distance varies with barcode size, symbology, print quality, angle, and lighting.

Which barcode types can the IPDA088P long-range barcode scanner read?

It supports common 1D formats such as UPC/EAN, Code 128, and Code 39, plus 2D formats including PDF417, Data Matrix, QR, Aztec, and MaxiCode. This coverage fits most warehouse, logistics, and retail labels.

Can the IPDA088P long-range scanner run inventory apps?

Yes. It runs Android 13 and supports widely used inventory and warehouse apps such as inFlow, Zoho, Sortly, Odoo, and Orca Scan. App compatibility should be confirmed before a large fleet rollout.

What connectivity does the IPDA088P-LR support?

This long-range barcode scanner supports dual-band Wi-Fi, 4G cellular data, Bluetooth 5.1, and GPS. These connections allow scans to sync across warehouses, yards, vehicles, and mobile workflows.

How does battery hot swap work on the IPDA088P long-range scanner?

The removable 6700mAh main battery is supported by a built-in 100mAh backup battery, so the main battery can be replaced without immediately losing active data. The main battery is rated for more than 12 hours of continuous use depending on conditions.

Is the MUNBYN IPDA088P-LR rugged enough for warehouse use?

Yes. It is IP65 rated against dust and water exposure and tested for repeated 1.8 m (5.9 ft) drops onto concrete. The touch panel also supports glove and wet-hand operation.

What should I check if the IPDA088P-LR will not charge?

Use the original charger and cable, inspect the USB-C port, and make sure the removable battery is seated correctly. Stop using any damaged charging accessory and contact MUNBYN support if the problem continues.
